Raschig rings

DSN DOLSIN manufactures metal Raschig rings

Main fields of application:

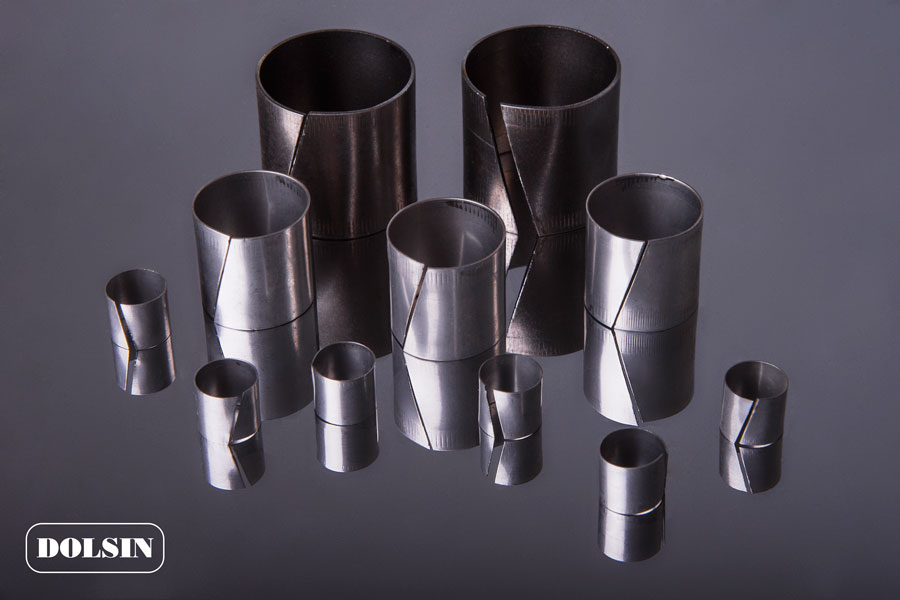

Metal Raschig rings:

used at high temperatures, in the general metabolic processesand, hot exhaust fumes purification, in environments requiring resistance to high temperature differences, combined with aggressive working environment

Metal Raschig rings - Random packing

Raschigi rings fi 12
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,2	411,3	0,03979	312,4	365,5	180,6	107,4	440 000
0,3	418,0	0,05969	468,5	534,8	271,0	161,1	440 000
0,4	424,9	0,07958	624,7	713,0	361,3	214,9	440 000

Raschig rings fi 25
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,3	209,0	0,03062	240,3	274,3	139,0	82,7	52 000
0,4	210,7	0,04082	320,4	365,7	185,3	110,2	52 000
0,5	212,3	0,05103	400,5	457,2	231,7	137,8	52 000
0,6	214,0	0,06123	480,7	548,6	278,0	165,3	52 000

Raschig rings fi 35
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,3	152,6	0,02250	176,6	201,6	102,2	60,8	19 500
0,4	153,5	0,03000	235,5	268,8	136,2	81,0	19 500
0,5	154,3	0,03750	294,4	336,0	170,3	101,3	19 500
0,6	155,2	0,04500	353,3	403,2	204,3	121,5	19 500
0,7	156,1	0,05250	412,2	470,4	238,4	141,8	19 500

Raschig rings fi 50
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,4	103,7	0,02041	160,2	182,9	92,7	55,1	6 500
0,5	104,1	0,02551	200,3	228,6	115,8	68,9	6 500
0,6	104,5	0,03062	240,3	274,3	139,0	82,7	6 500
0,7	104,9	0,03572	280,4	320,0	162,2	96,4	6 500
0,8	105,3	0,04082	320,4	365,7	185,3	110,2	6 500
0,9	105,8	0,04592	360,5	411,5	208,5	124,0	6 500
1,0	106,2	0,05103	400,5	457,2	231,7	137,8	6 500

Raschig rings fi 80
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,5	65,1	0,01608	126,2	144,0	73,0	43,4	1 600
0,6	65,3	0,01929	151,4	172,9	87,6	52,1	1 600
0,7	65,4	0,02251	176,7	201,7	102,2	60,8	1 600
0,8	65,6	0,02572	201,9	230,5	116,8	69,5	1 600
0,9	65,8	0,02894	227,2	259,3	131,4	78,1	1 600
1,0	65,9	0,03215	252,4	288,1	146,0	86,8	1 600
1,2	66,3	0,03858	302,9	345,7	175,2	104,2	1 600

NOTE: The following specific density was established for:

1. Steel: 7,85 g/cm³

2. Copper: 8,96 g/cm³

3. Titanium: 4,54 g/cm³

4. Aluminium: 2,70 g/cm³
