Białecki Rings

DSN DOLSIN manufactures Białecki rings made of plastic and metal.

Main fields of application:

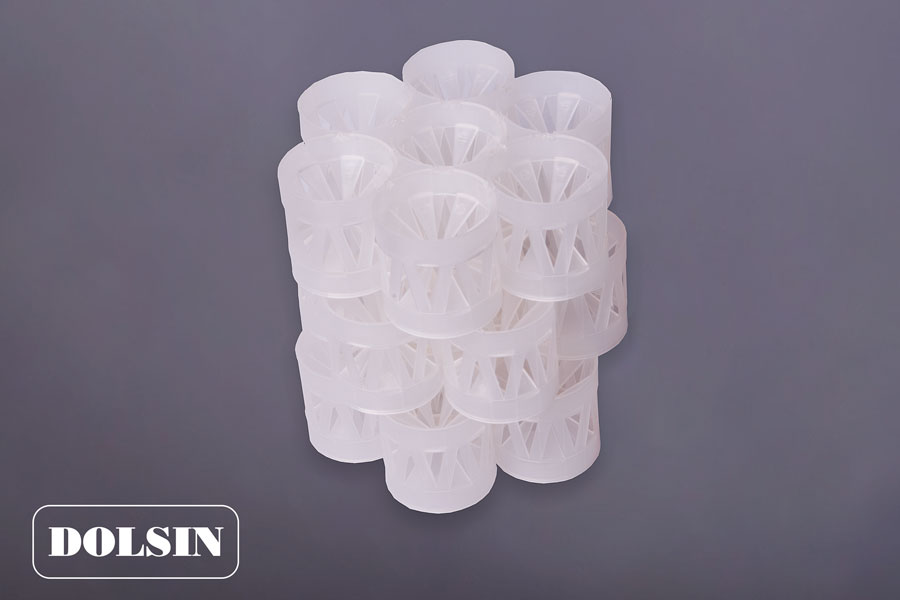

Plastic Białecki rings:

used in water treatment processes, the processes of absorption, desorption within the chemical and thermal resistance ranges unachievable for plastics.

bialecki rings, bialecki rings plastics, bialecki rings packages, dolsin

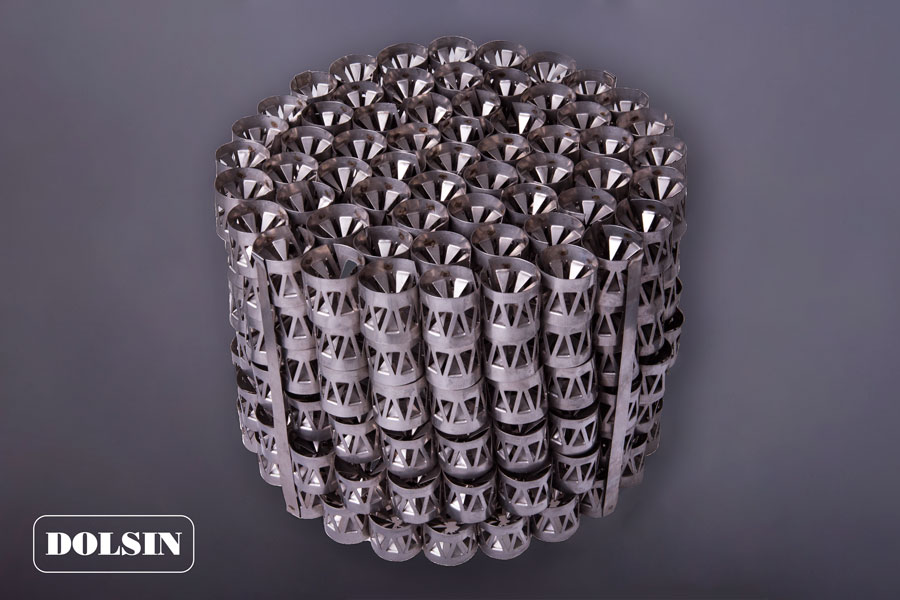

Metal Białecki rings:

used at high temperatures, in the general metabolic processes, hot exhaust fumes purification, and in environments requiring resistance to high temperature differences, combined with aggressive working environment.

bialecki rings, bialecki rings metals, bialecki rings packages, dolsin

Białecki rings are an original openwork-shelf column filling, enabling achievement of the highest working parameters of the columns. Compared with other types of fillings, Białecki rings give much better performance results, as evidenced by laboratory and industrial tests.

Summarized test results are as follows:

Białecki rings provide two to three times lower resistance than Raschig rings
have two to three times more capacity
disperse the liquid evenly across the column cross-section, irrespective of the supply process, even with the point liquid supply
insignificant “hold-up” fluid retention in relation to other fillings – liquid flows quickly after the column stops working
maintain resolving power at a constant level regardless of the column load
mass transfer factor increases with the ring dimensions, contrary to the other known fillings do not overgrow
have a rigid structure, which allows for the reduction of up to 20% in weight when compared to the other filling rings.

Plastic Białecki rings – Random packing

Białecki rings fi 25
material thickness	surface in m²/m³	ring volume in m³/m³	PP	PE	PVDF	PVC	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
1,2	246,0	0,12246	115,1	116,3	217,9	178,7	52 000

Białecki rings fi 50
material thickness	surface in m²/m³	ring volume in m³/m³	PP	PE	PVDF	PVC	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
1,6	116,0	0,08164	76,7	77,5	145,2	119,1	6 500

Białecki rings fi 80
material thickness	surface in m²/m³	ring volume in m³/m³	PP	PE	PVDF	PVC	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
1,8	70,5	0,05788	47,0	47,5	89,1	73,1	1 600

Plastic Białecki rings – Structured packing

Białecki rings fi 25
material thickness	surface in m²/m³	ring volume in m³/m³	PP	PE	PVDF	PVC	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
1,2	343,5	0,17097	160,7	162,4	304,2	249,5	72 600

Białecki rings fi 50
material thickness	surface in m²/m³	ring volume in m³/m³	PP	PE	PVDF	PVC	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
1,6	160,2	0,11279	106,0	107,1	200,7	164,6	8 980

Białecki rings fi 80
material thickness	surface in m²/m³	ring volume in m³/m³	PP	PE	PVDF	PVC	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
1,8	95,1	0,7813	63,5	64,2	120,3	98,6	2 160

NOTE: The following specific density was established for:

1. PP: 0,94 g/cm³

2. PE: 0,95 g/cm³

3. PVDF: 1,78 g/cm³

4. PVC: 1,46 g/cm³

Metal Białecki rings – Random packing

Białecki rings fi 12
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,2	426,1	0,03979	312,4	365,5	180,6	107,4	440 000
0,3	440,2	0,05969	468,5	534,8	271,0	161,1	440 000
0,4	454,4	0,07958	624,7	713,0	361,3	214,9	440 000

Białecki rings fi 25
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,3	214,5	0,03062	240,3	274,3	139,0	82,7	52 000
0,4	218,0	0,04082	320,4	365,7	185,3	110,2	52 000
0,5	221,4	0,05103	400,5	457,2	231,7	137,8	52 000
0,6	224,9	0,06123	480,7	548,6	278,0	165,3	52 000

Białecki rings fi 35
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,3	155,5	0,02250	176,6	201,6	102,2	60,8	19 500
0,4	157,3	0,03000	235,5	268,8	136,2	81,0	19 500
0,5	159,1	0,03750	294,4	336,0	170,3	101,3	19 500
0,6	160,9	0,04500	353,3	403,2	204,3	121,5	19 500
0,7	162,8	0,05250	412,2	470,4	238,4	141,8	19 500

Białecki rings fi 50
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,4	105,5	0,02041	160,2	182,9	92,7	55,1	6 500
0,5	106,4	0,02551	200,3	228,6	115,8	68,9	6 500
0,6	107,2	0,03062	240,3	274,3	139,0	82,7	6 500
0,7	108,1	0,03572	280,4	320,0	162,2	96,4	6 500
0,8	109,0	0,04082	320,4	365,7	185,3	110,2	6 500
0,9	109,9	0,04592	360,5	411,5	208,5	124,0	6 500
1,0	110,7	0,05103	400,5	457,2	231,7	137,8	6 500

Białecki rings fi 80
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	density in kg/m³	density in kg/m³	density in kg/m³	density in kg/m³	Bulk number in pcs./1 m³
0,5	66,0	0,01608	126,2	144,0	73,0	43,4	1 600
0,6	66,4	0,01929	151,4	172,9	87,6	52,1	1 600
0,7	66,7	0,02251	176,7	201,7	102,2	60,8	1 600
0,8	67,0	0,02572	201,9	230,5	116,8	69,5	1 600
0,9	67,4	0,02894	227,2	259,3	131,4	78,1	1 600
1,0	67,7	0,03215	252,4	288,1	146,0	86,8	1 600
1,2	78,3	0,03858	302,9	345,7	175,2	104,2	1 600

Metal Białecki rings – Structured packing

Białecki rings fi 25
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	masa kg/m³	masa kg/m³	masa kg/m³	masa kg/m³	Bulk number in pcs./1 m³
0,3	299,5	0,04274	335,5	383,0	194,1	115,4	72 600
0,4	304,3	0,05699	447,4	510,6	258,7	153,9	72 600
0,5	309,2	0,07124	559,2	638,3	323,4	192,3	72 600
0,6	314,0	0,08549	671,1	766,0	388,1	230,8	72 600

Białecki rings fi 35
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	masa kg/m³	masa kg/m³	masa kg/m³	masa kg/m³	Bulk number in pcs./1 m³
0,3	209,4	0,03030	237,9	271,5	137,6	81,8	26 260
0,4	211,8	0,04040	217,2	362,0	183,4	109,1	26 260
0,5	214,3	0,05050	396,5	452,5	229,3	136,4	26 260
0,6	216,7	0,06061	475,8	543,0	275,1	163,6	26 260
0,7	219,2	0,07071	555,0	633,5	321,0	190,9	26 260

Białecki rings fi 50
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	masa kg/m³	masa kg/m³	masa kg/m³	masa kg/m³	Bulk number in pcs./1 m³
0,4	145,8	0,02820	221,3	252,6	128,0	76,1	8 980
0,5	147,0	0,03525	276,7	315,8	160,0	95,2	8 980
0,6	148,2	0,04230	332,0	379,0	192,0	114,2	8 980
0,7	149,4	0,04935	387,4	442,1	224,0	133,2	8 980
0,8	150,6	0,05639	442,7	505,3	256,0	152,3	8 980
0,9	151,8	0,06344	498,0	568,5	288,0	171,3	8 980
1,0	153,0	0,07049	553,4	631,6	320,0	190,3	8 980

Białecki rings fi 80
material thickness	surface in m²/m³	ring volume in m³/m³	steel	copper	titanium	aluminium	Bulk number in pcs./1 m³
material thickness	surface in m²/m³	ring volume in m³/m³	masa kg/m³	masa kg/m³	masa kg/m³	masa kg/m³	Bulk number in pcs./1 m³
0,5	89,1	0,02170	170,4	194,5	98,5	58,6	2 160
0,6	89,6	0,02604	204,4	233,4	118,2	70,3	2 160
0,7	90,0	0,03039	238,5	272,3	137,9	82,0	2 160
0,8	90,5	0,03473	272,6	311,1	157,7	93,8	2 160
0,9	91,0	0,03907	306,7	350,0	177,4	105,5	2 160
1,0	91,4	0,04341	340,7	388,9	197,1	117,2	2 160
1,2	105,7	0,05209	408,9	466,7	236,5	140,6	2 160

NOTE: The following specific density was established for:

1. Steel: 7,85 g/cm³

2. Copper : 8,96 g/cm³

3. Tytan: 4,54 g/cm³

4. Titanium : 2,70 g/cm³
